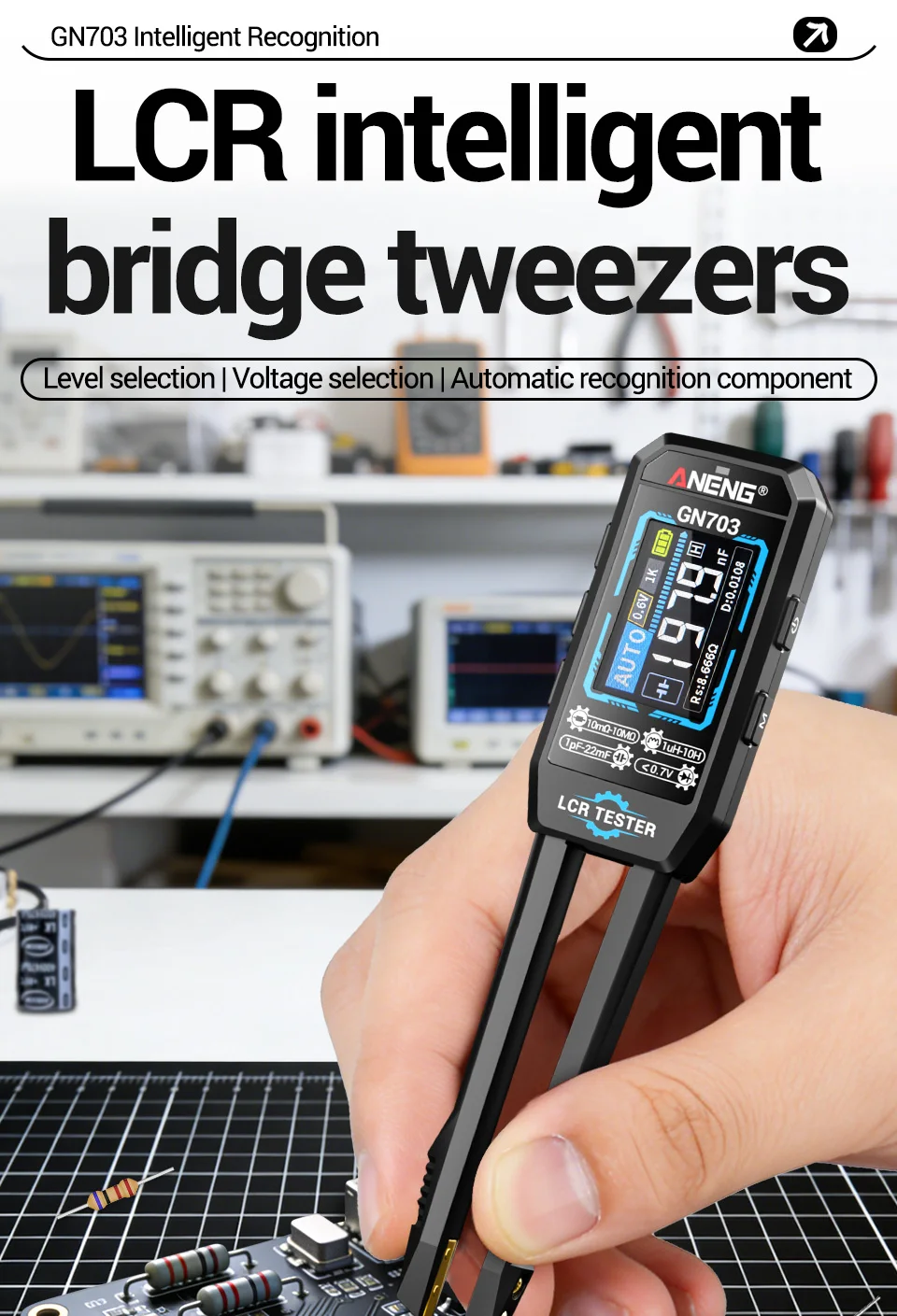

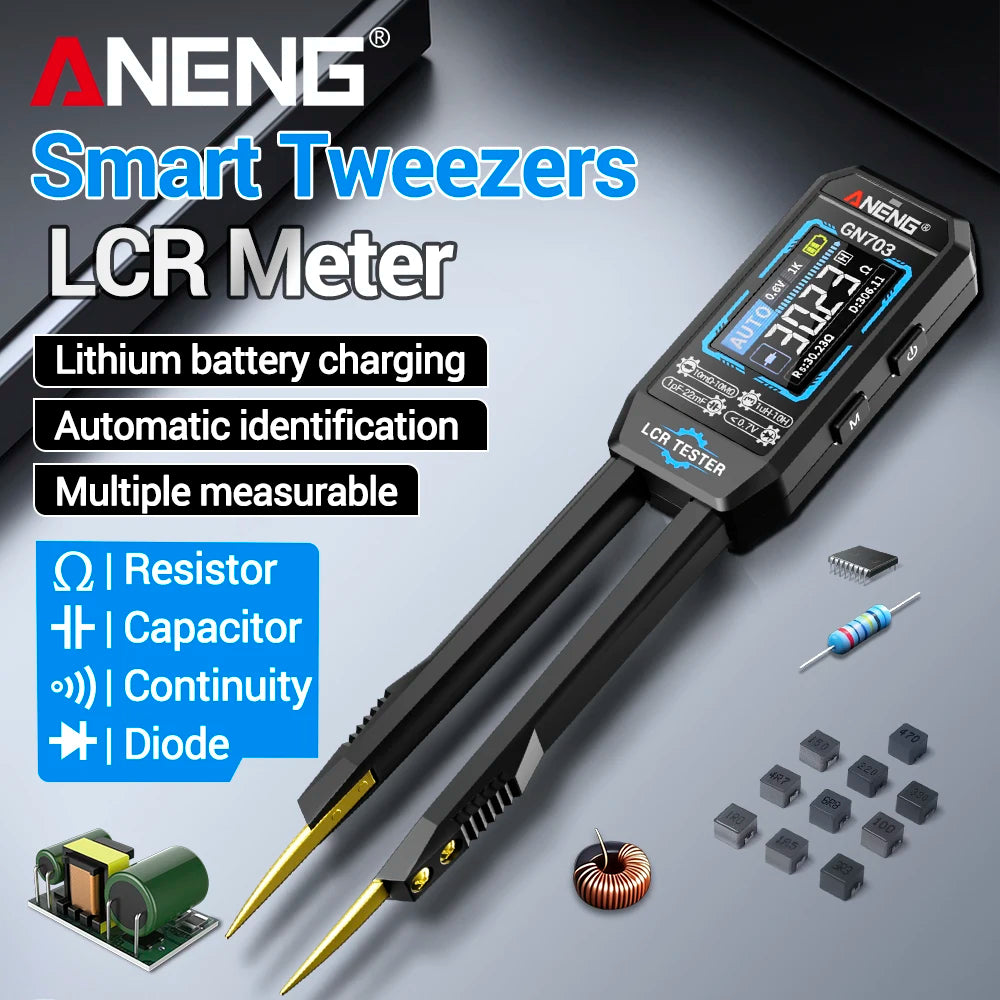

ANENG GN703 Smart Tweezers Professional Digital LCR Meter SMD ESR Test Capacitance Resistance Inductance Calibration Tool
ANENG GN703 Smart Tweezers Professional Digital LCR Meter SMD ESR Test Capacitance Resistance Inductance Calibration Tool
SPECIFICATIONS
AC Voltage: /
Battery Included: Yes
Brand Name: NONE,ANENG
Calibration: yes
Certification: NONE
Charge spec: USB 5V/1A
Continuity: yes
DC Voltage: /
DIY Supplies: Electrical
Data Hold: yes
Data Record: No
Diode: On Voltage <0.7V
Display Type: Digital Display
High-concerned chemical: None
Is Smart Device: No
Language: Chinese/English
Measuring Capacitance Range: 1pF~22mF
Measuring Inductance Range: 1uH~10H
Measuring Resistance Range: 10mΩ~10MΩ
Model Number: ANENG GN703 LCR Bridge Tweezers tester
Operating Mode: Auto Range
Origin: Mainland China

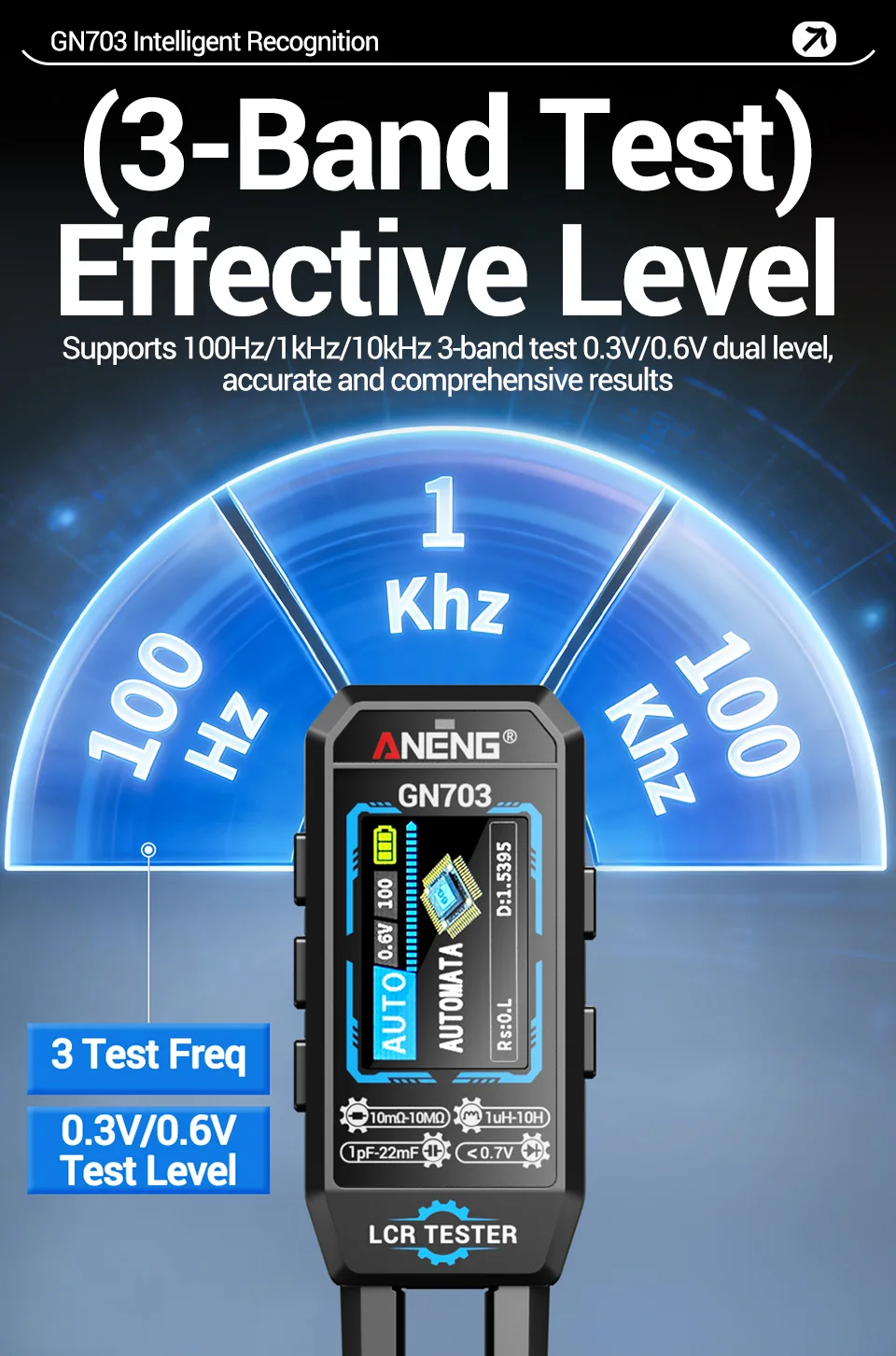

Test freq: 100Hz/1K/10K
Test level: 0.3V/0.6V
ANENG GN703 Smart LCR Tweezers SMD ESR Tester for Electronic Components Digital Capacitance Resistance Inductance Meter with Calibration
Product Introduction:
The ANENG GN703 is a professional-grade digital LCR (Inductance, Capacitance, Resistance) meter designed for high-precision electronic component testing. It supports multiple test frequencies (100Hz/1kHz/10kHz) and provides accurate measurements for resistors, capacitors, and inductors across wide ranges. With features like data hold, calibration, USB direct charging, and a user-friendly bilingual interface, it is an essential tool for electricians, technicians, and DIY enthusiasts.

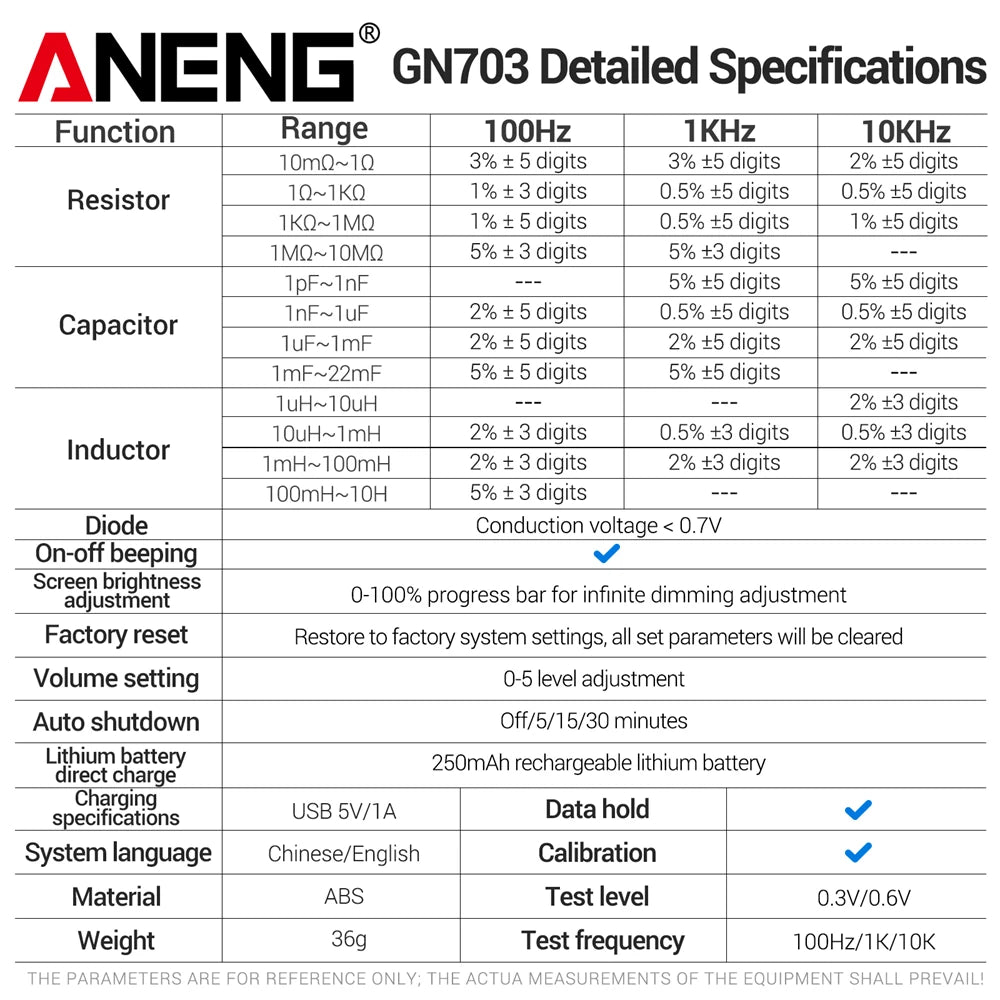

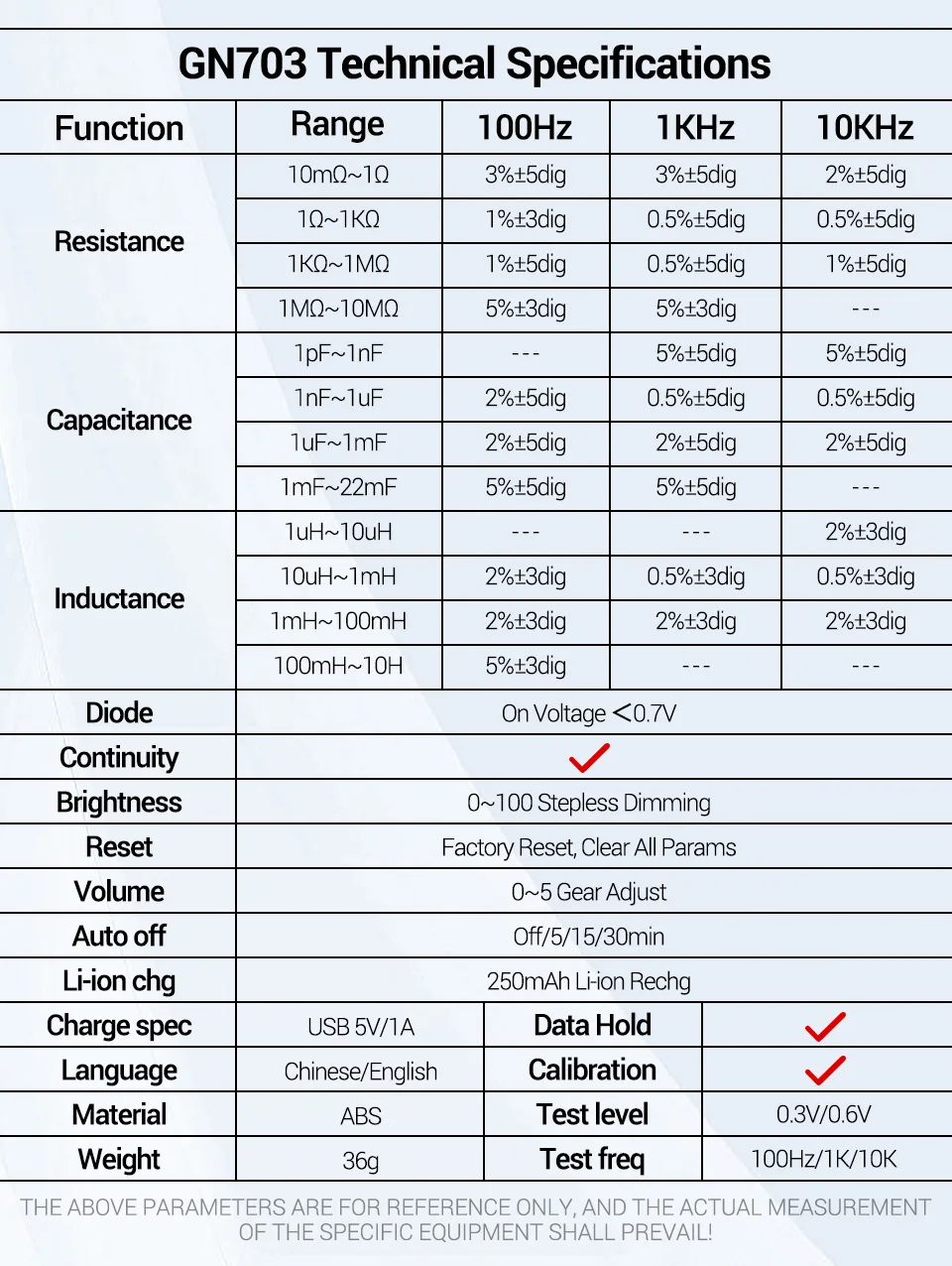

GN703 Technical Specifications
|
Function |
Range |
100Hz |
1KHz |
10KHz |
|
Resistance |
10mΩ~1Ω |
3%±5dig |
3%±5dig |
2%±5dig |
|
1Ω~1KΩ |
1%+3dig |
0.5%±5dig |
0.5%±5dig |
|
|
1KΩ~1MΩ |
1%±5dig |
0.5%±5dig |
1%±5dig |
|
|
1MΩ~10MΩ |
5%±3dig |
5%±3dig |
||
|
Capacitance |
1pF~1nF |
5%±5dig |
5%±5dig |
|
|
1nF~1uF |
2%±5dig |
0.5%±5dig |
0.5%±5dig |
|
|
1uF~1mF |
2%±5dig |
2%±5dig |
2%±5dig |
|
|
1mF~22mF |
5%±5dig |
5%±5dig |
||
|
Inductance |
1uH~10uH |
2%±3dig |
||
|
10uH~1mH |
2%±3dig |
0.5%±3dig |
0.5%±3dig |
|
|
1mH~100mH |
2%±3dig |
2%±3dig |
2%±3dig |
|
|
100mH~10H |
5%±3dig |
|||
|
Diode |
On Voltage< 0.7V |
|||
|
Continuity |
√ |
|||
|
Brightness |
0~100 Stepless Dimming |
|||
|
Reset |
Factory Reset,Clear All Params |
|||
|
Volume |
0~5 Gear Adjust |
|||
|

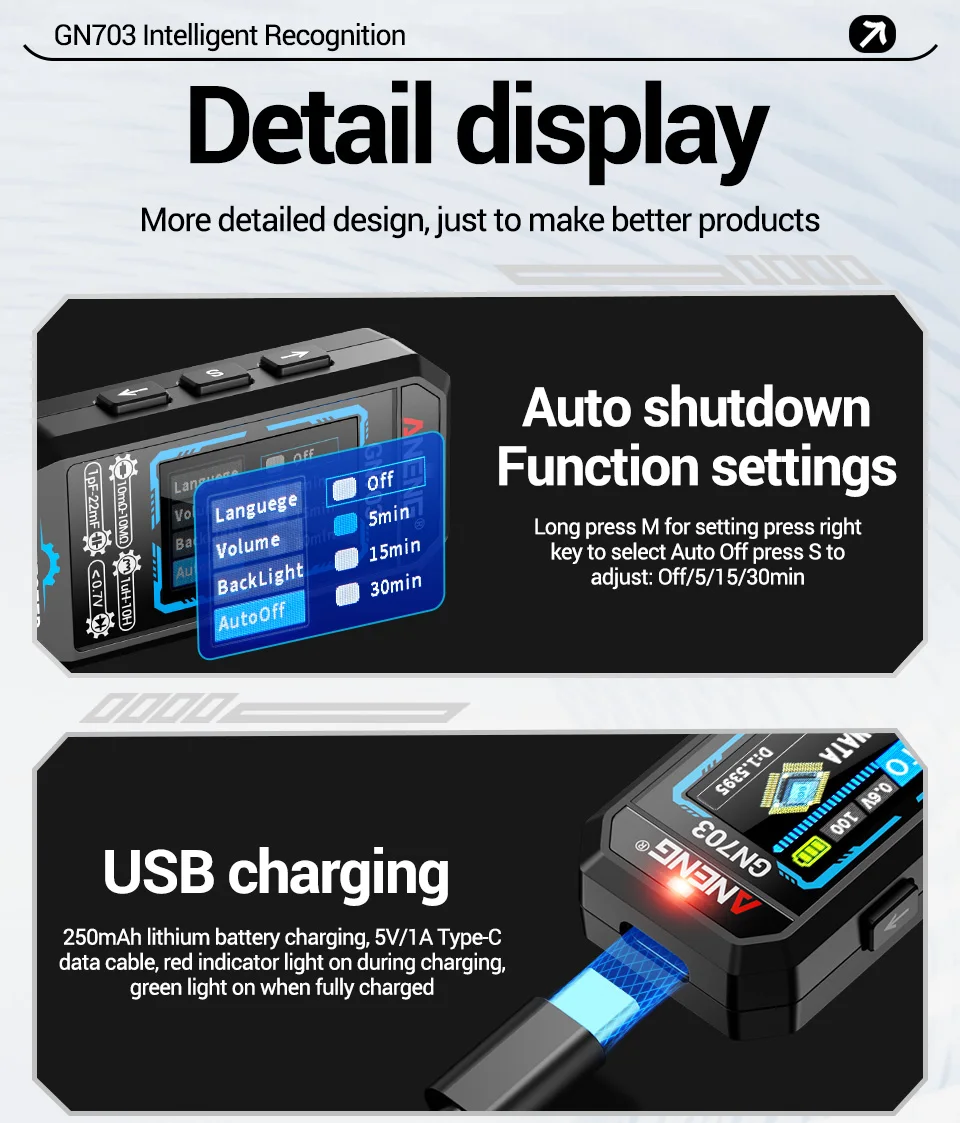

Auto off |
Off/5/15/30min |
|||
|
Li-ion chg |
250mAh Li-ion Rechg |
|||
|
Charge spec |
USB 5V/1A |
Data Hold |
√ |
|
|
Language |
Chinese/English |
Calibration |
√ |
|
|
Material |
ABS |
Test level |
0.3V/0.6V |
|
|
Test freq |
100Hz/1KHz/10KHz |
|||

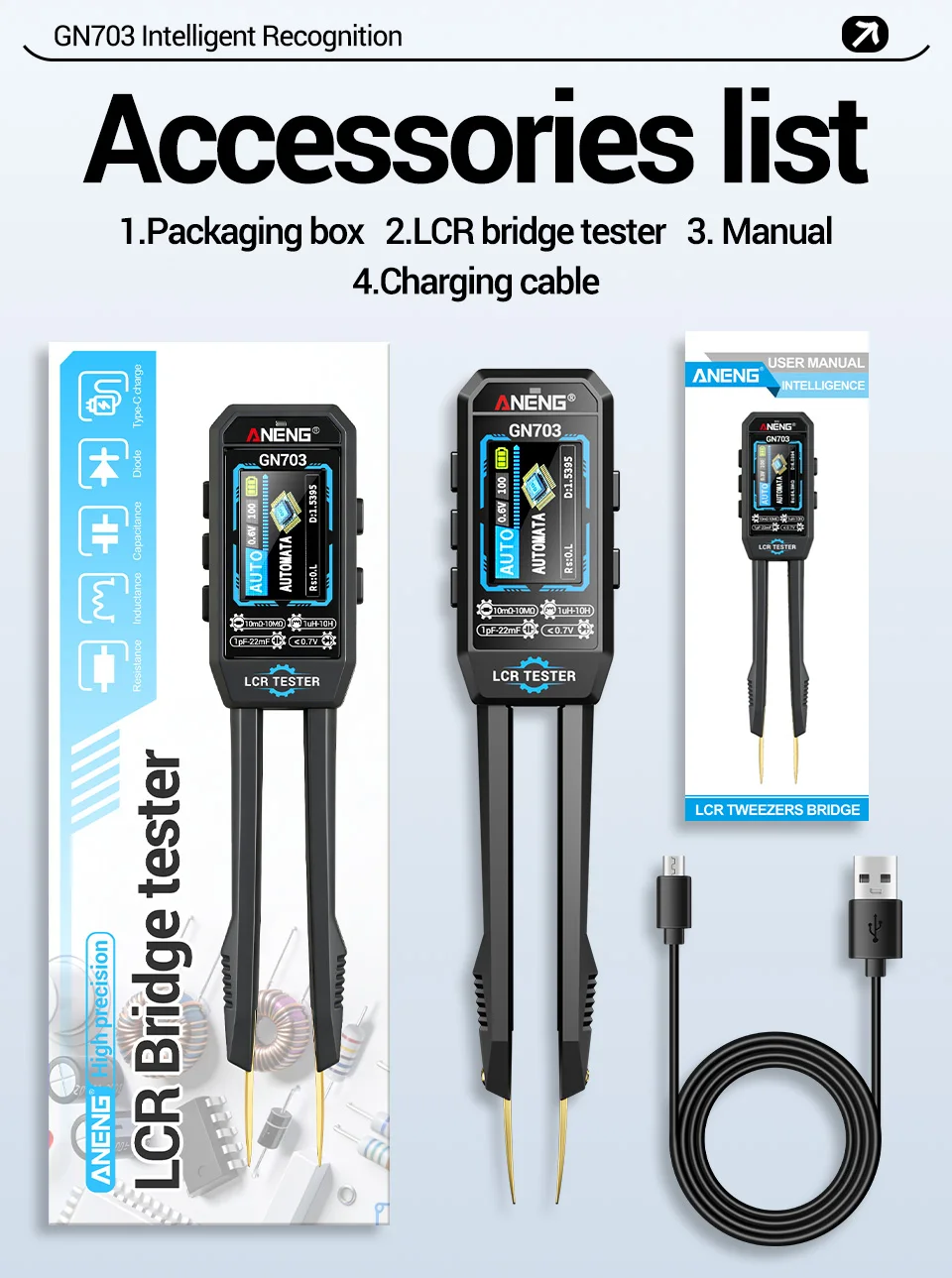

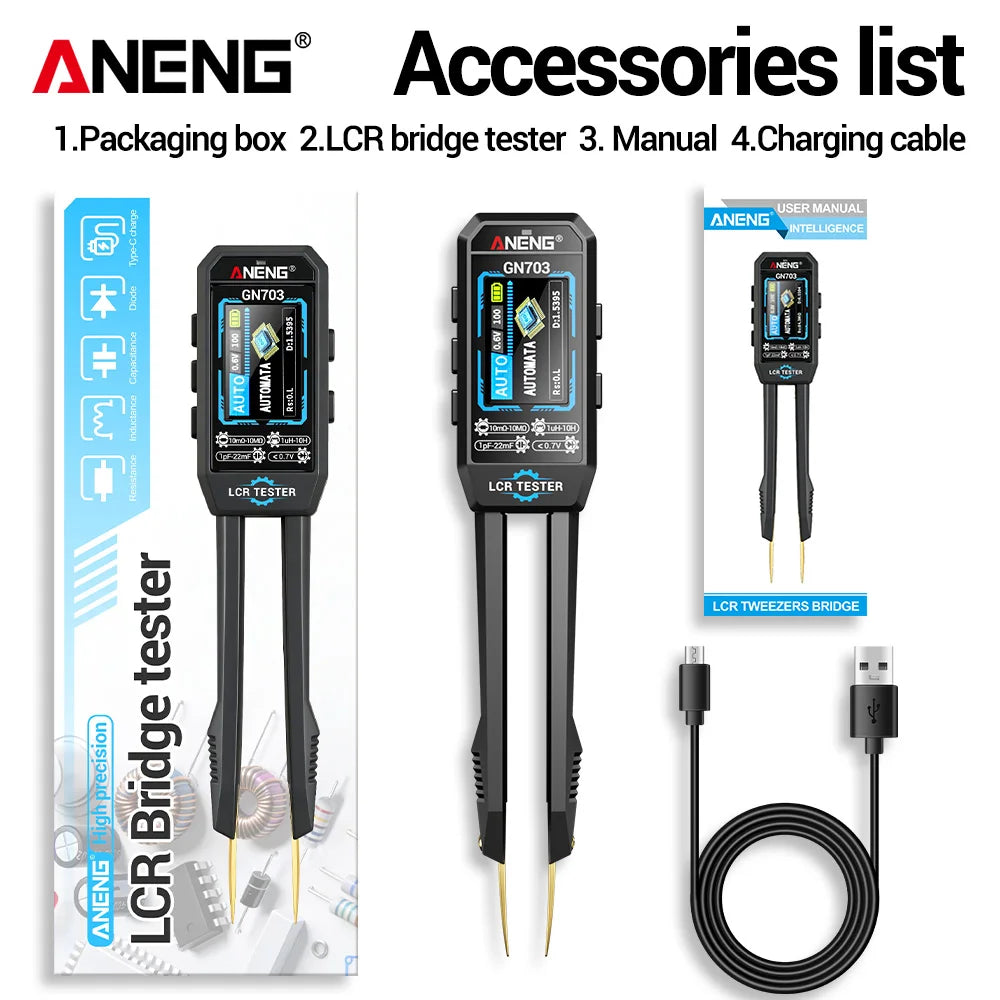

Packing List:
1 * Packaging box
1 * LCR bridge tester
1 * Manual
1 * Charging cable
Safety Precautions
To avoid possible electric shock, fire, and personal injury, please read the safety precautions before use:
1) Do not measure voltage to avoid damaging instruments and personal injury.
2) Do not use the instrument in flammable, explosive, or high-temperature environments, and do not input voltage.
3) Do not use this product around explosive gases and vapors or in humid environments.
4) Waste batteries and scrapped instruments used for instrument replacement cannot be disposed of together with household waste.Please handle them in accordance with relevant national or local laws and regulations.
